LED Depanel Electric Control with 6 Blades PCB Cut Machine,CWVC-3S

Name: LED Depanel Electric Control with 6 Blades PCB Cut MachineCWVC3S
Brand: Chuangwei PCB Depaneling Machine
Price: 1 USD

Wholesale LED Depanel Electric Control with 6 Blades PCB Cut Machine,CWVC-3S from china suppliers

Brand Name : Chuangwei PCB Depaneling Machine

Model Number : CWVC-3S pcb depaneling

Certification : CE

Place of Origin : China

MOQ : 1 Set

Supply Ability : 40 sets per month

Packaging Details : Plywooden case

Price : Negotiable

Delivery Time : within 3 days

Packaging Detail : Plywooden case

Cutting length : Unlimited

Delivery Detail : within 3 days

Warranty : 1 year

Establish year : 1999

Model : CWVC-3S

Contact Now

LED Depanel Electric Control with 6 Blades PCB Cut Machine,CWVC-3S Specification

It is electric control,the straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process.

Due the special design of the knives also boards with high components placed closed to

the edages can be separated safely.

Name	PCB Depaneling Machine
Model	CWVC-3S
Weight	50kg
Cutting speed	0-400mm/s
Cutting thickness	0.8-3.0mm
Cutting length	Unlimited
Voltage	220V
Power	40W
Main engine size	1200620330mm
The whole machine size	2400620330mm

The features of PCB Depaneling Machine

1. This machine applies unique multi sections cutting, the cutting is to be finished

by 6 pieces round blade.

2. Working process is pretty smooth, due multi sections cutting.

3. There won`t be any deviation when cutting along the v-cut slot, even the v-cut

slot is shallow.

4. The blade made by high speed steel imported from Sweden, which prolonged the

life of the blade.

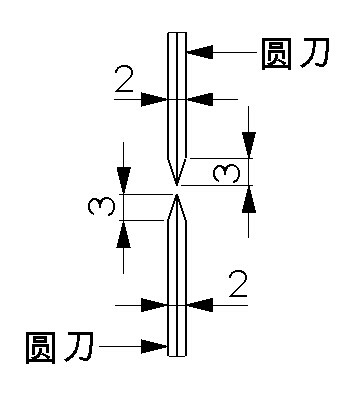

5. Precise adjustment of up and down blade.

LED Depanel Electric Control with 6 Blades PCB Cut Machine,CWVC-3S

More information about this model machine,welcome to contact and visit us:

Email/Skype: s5@smtfly.com

Mobile/Wechat/WhatsApp(Bunny): +86-136-8490-4990
